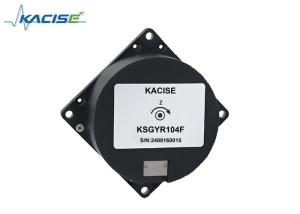

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm

Name: KSGYR104F Fibre Optic Gyroscope 500s 707032mm
Brand: kacise
Price: 1 USD

China KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm wholesale

Brand Name : kacise

Model Number : KSGYR104F

Certification : ce

Place of Origin : china

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply voltage : +5V

Dimensions : 70×70×32 mm

Start time : 5s

Dynamic range : ±500 °/s

Operate temperature : -40°C～+70°C

Storage temperature : -45°C～+80°C

Contact Now

KSGYR104F Fibre Optic Gyroscope
Product Introduction
This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Feature
● Accurately measure the angular speed of moving objects
● All solid state, no rotating parts and friction parts
● Long life
● Large dynamic range
● Instant start
● Simple structure
Application
● Gimbal camera
● Flight control platform
● Inertial navigation system
● Inertial monitoring system
● Optical, photography and other platforms stable
● Inertial measurement unit.

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm
Technical Specifications

Parameter	KSGYR104F H	KSGYR104F M	KSGYR104F L
Power supply parameter
Supply voltage	+5V	+5V	+5V
Product performance
Dimensions	70×70×32 mm	70×70×32 mm	70×70×32 mm
Start time	5s	5s	5s
Bias (10s smooth, fix temperature)	≤0.03(10s) °/h ≤0.01(100s) °/h	≤0.05 °/h	≤0.3 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.1 °/h	≤0.15 °/h	≤0.5 °/h
Bias repeatability	≤0.03°/h	≤0.05°/h	≤0.3°/h
Random walk	≤0.005°/h^1/2	≤0.01°/h^1/2	≤0.02°/h^1/2
Scale factor non-linearity	≤10 ppm	≤20 ppm	≤50 ppm
Scale factor repeatability	≤10 ppm	≤20 ppm	≤50 ppm
Dynamic range	±500 °/s	±500 °/s	±500 °/s
Power dissipation (full temperature)	<4W	<4W	<4W
Weight	<290g	<290g	<290g
Environment
Operate temperature	-40°C～+70°C	-40°C～+70°C	-40°C～+70°C
Storage temperature	-45°C～+80°C	-45°C～+80°C	-45°C～+80°C

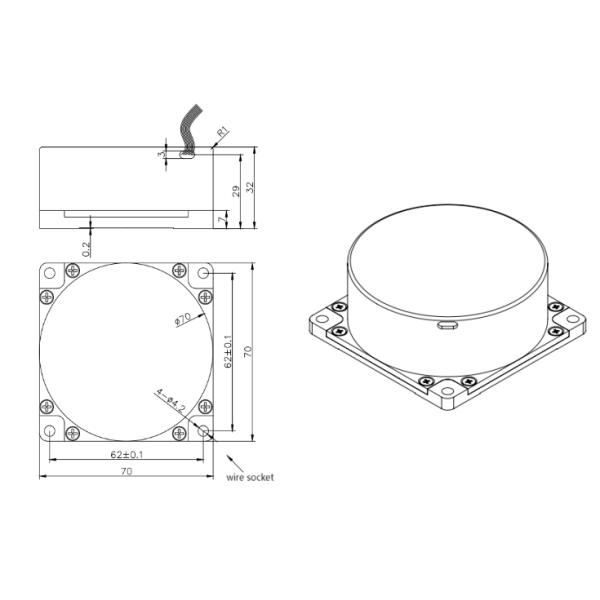

Dimensions

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm
